Hardware and Cloud System Business

A single sensor enables energy disaggregation which was invented at Sony Corporation times. It is widely offered to the housing industry, residential house management industry, PV equipment manufacturers, breaker box manufacturers.

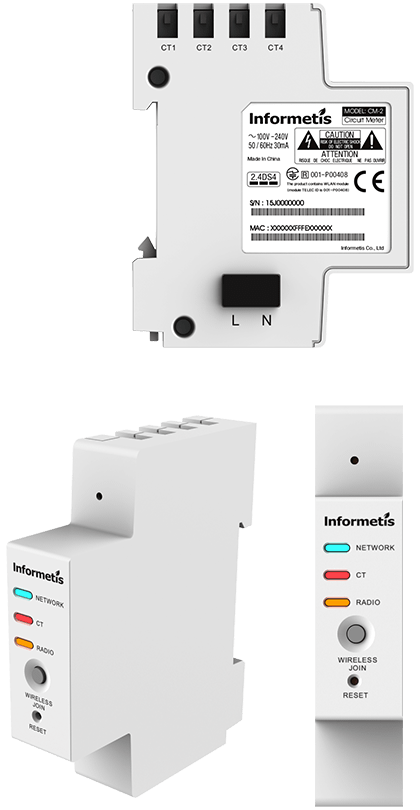

Circuit Meter
CM-2/UK

サーキットメータ CM-2/Jサーキットメータ CM-2/J
Compliance
IEEE802.11b/g/n
Data transmission speed
Up to 65 Mbps
Frequency band
2.4GHz (all 13 channels)
Security
WPS, WPA/WPA2
CT input
4 circuits
Rating
AC100-240V, 50Hz/60Hz, 30mA
Operating environment
Temperature -5℃ ~ 40℃ / Humidity 45% ~ 85%(non-condensing)
Dimensions and weight
17.7mm x 81.0mm x 66.6mm / 60g
